Gantry Machining Center: A Comprehensive Overview

The Gantry Machining Center is a highly advanced and versatile machine tool widely used in modern manufacturing industries. Known for its robust structure, precision, and ability to handle large workpieces, it plays a critical role in aerospace, automotive, energy, and heavy machinery sectors. This article explores the key features, working principles, advantages, and applications of gantry machining centers.

1. Introduction to Gantry Machining Center

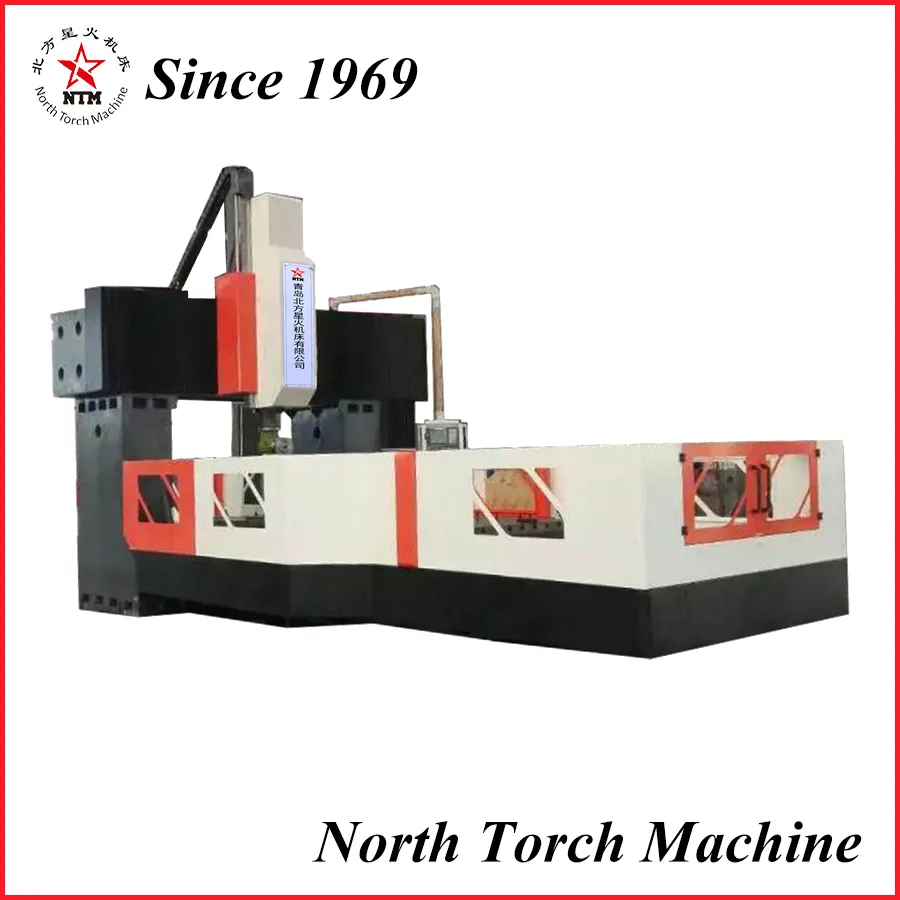

A Gantry Machining Center is a type of CNC (Computer Numerical Control) machine characterized by its bridge-like structure, where the crossbeam (gantry) moves along fixed rails. Unlike traditional vertical or horizontal machining centers, the gantry design provides superior stability and rigidity, making it ideal for machining large, heavy, or complex components.

2. Key Components and Structure
The primary components of a gantry machining center include:

- Gantry Frame: The rigid overhead structure consists of two vertical columns and a horizontal crossbeam, forming a "bridge" shape. This design minimizes vibration and deflection during machining.
- Worktable: Typically fixed or movable, it holds the workpiece securely. Some models feature rotary tables for multi-axis machining.
- Spindle: The cutting tool is mounted on the spindle, which moves along the X, Y, and Z axes. High-speed spindles with automatic tool changers enhance efficiency.
- CNC Control System: The brain of the machine, ensuring precise movement and coordination of all axes.
- Linear Guides and Drives: High-precision ball screws or linear motors enable smooth and accurate motion.

3. Working Principle
The Gantry Machining Center operates based on CNC programming, where a pre-designed CAD/CAM model guides the toolpath. The spindle moves along the gantry structure, while the worktable may remain stationary or adjust position for multi-sided machining. Key steps include:
1. Workpiece Setup: The material is clamped onto the worktable.
2. Tool Selection: The automatic tool changer loads the required cutting tool.
3. Machining Process: The spindle moves in three or more axes to perform milling, drilling, boring, or tapping operations.
4. Quality Control: Sensors and probes may verify dimensions in real-time.

4. Advantages of Gantry Machining Centers
- High Rigidity: The gantry structure withstands heavy cutting forces without deformation.
- Large Work Envelope: Capable of machining oversized parts (e.g., aircraft wings, ship components).
- Multi-Axis Capability: Some models offer 4-axis or 5-axis functionality for complex geometries.
- Precision and Repeatability: Achieves tight tolerances (±0.001 inches or better).
- Automation Compatibility: Integrates with robotic loaders for unmanned production.

5. Applications
Gantry machining centers are indispensable in industries requiring high precision and large-scale production:
- Aerospace: Machining turbine blades, fuselage frames, and landing gear.
- Automotive: Producing engine blocks, molds, and chassis components.
- Energy: Fabricating wind turbine hubs and nuclear reactor parts.
- Mold & Die: Creating intricate injection molds and stamping dies.

6. Technological Advancements
Modern Gantry Machining Centers incorporate innovations such as:
- Linear Motor Drives: For faster acceleration and reduced friction.
- IoT Integration: Real-time monitoring of machine performance and predictive maintenance.
- Hybrid Machining: Combining additive manufacturing (3D printing) with subtractive processes.

7. Selection Criteria
When choosing a gantry machining center, consider:
- Workpiece Size and Weight: Ensure the machine’s travel and load capacity match requirements.
- Spindle Speed and Power: Higher RPM (Revolutions Per Minute) suits aluminum; high torque is needed for steel.
- Accuracy Requirements: Opt for machines with laser calibration if micron-level precision is critical.
- Automation Needs: Evaluate options for pallet changers or robotic integration.

8. Maintenance and Care
To maximize longevity:
- Regularly lubricate guideways and ball screws.
- Check spindle alignment and tool holder condition.
- Update CNC software and firmware periodically.

9. Future Trends
The future of Gantry Machining Centers lies in smarter, more adaptive systems, including:
- AI-Driven Optimization: Self-adjusting cutting parameters for efficiency.
- Sustainable Machining: Reduced energy consumption and coolant usage.

10. Conclusion
The Gantry Machining Center is a cornerstone of advanced manufacturing, offering unparalleled precision, versatility, and efficiency. As industries demand larger and more complex components, the evolution of gantry technology will continue to push the boundaries of what’s possible in machining.

By understanding its features and applications, manufacturers can leverage this powerful tool to enhance productivity and maintain a competitive edge.
