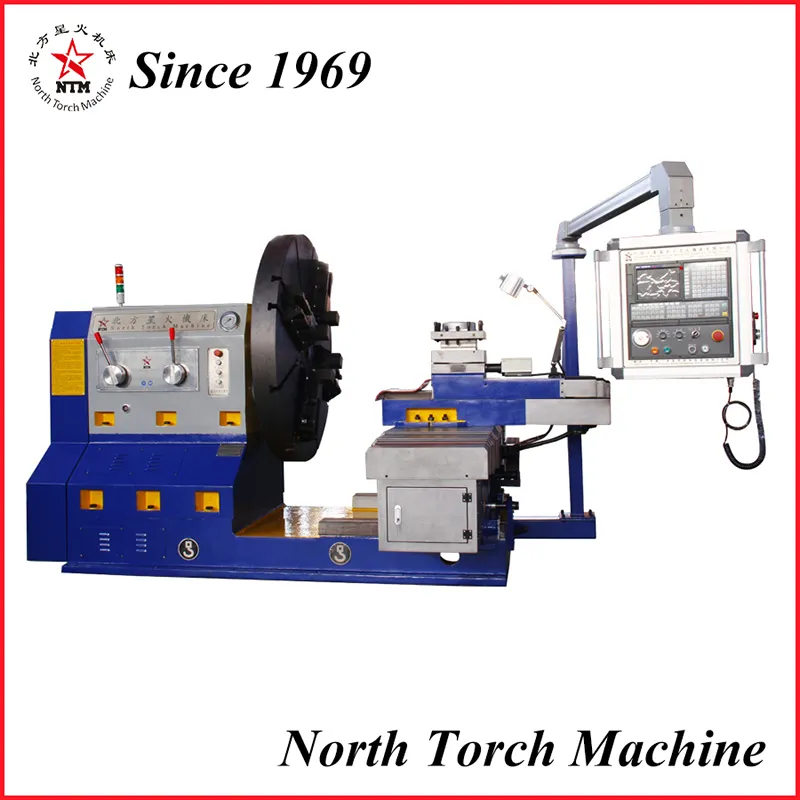

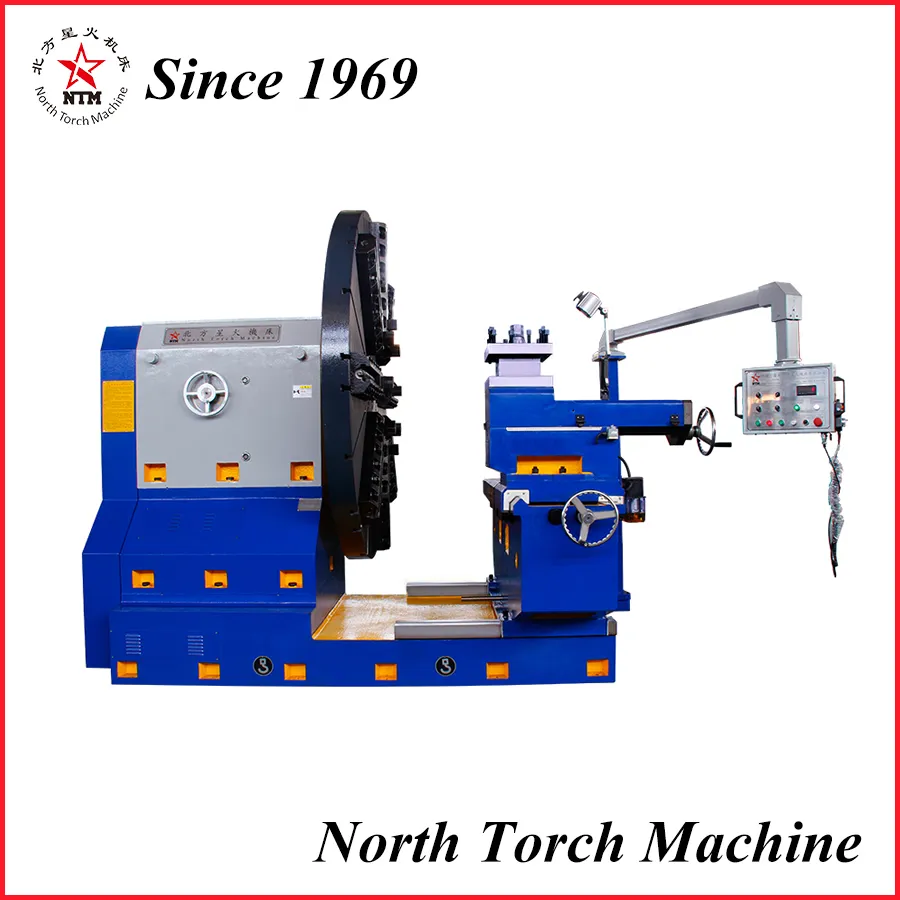

Floor Type Lathe

The Floor Type Lathe, also referred to as Large Head Lathe, Flange Turning Lathe, Disc Lathe, or Pit Lathe, is a heavy-duty machining solution designed for large-diameter and oversized workpieces. It features a robust rectangular base guide rail with a wide span, providing high rigidity and stability for low-speed, heavy-duty turning operations. The ergonomically designed operation station is positioned at the front for ease of use and an aesthetically coordinated appearance.

Structural Features:

• The machine adopts a unique configuration where the headstock spindle is perpendicular to the support plate, with the headstock and horizontal bed integrated into a single rigid unit mounted on a common base.

• The base utilizes a mountain guide structure, allowing manual adjustment of horizontal movement.

• Key components undergo advanced stress-relief treatment through vibration aging, while the bed is hardened by super-audio frequency quenching and guide rails are precision-ground for lasting accuracy.

Applications:
This lathe is capable of machining internal and external cylindrical surfaces, end faces, arcs, and other complex contours. It is ideally suited for processing wheels, tires, large planar plates, and ring-type components. Typical applications include tire molds, large-diameter flanges, tube sheets, steam turbine parts, and sealing heads, serving industries such as petrochemical, heavy machinery, automotive, mining, railway, and aviation manufacturing.
