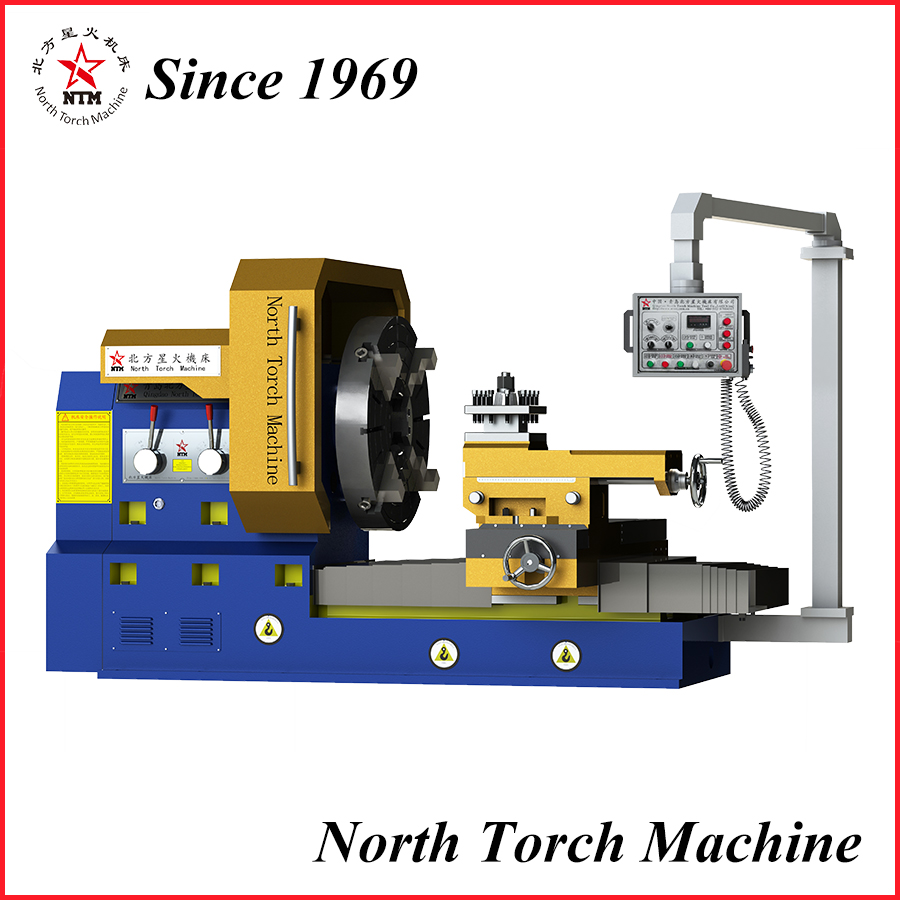

Facing CNC Lathe – How does it compare to traditional lathes?

2025-11-26 09:13:13

Facing CNC Lathe – How Does It Compare to Traditional Lathes?

Introduction

Lathes are among the oldest and most versatile machine tools, used for shaping materials like metal, wood, and plastic by rotating the workpiece against a cutting tool. Over time, lathe technology has evolved significantly, with traditional manual lathes giving way to Computer Numerical Control (CNC) lathes. One specialized variant is the facing CNC lathe, designed primarily for facing operations—a machining process where material is removed from the end of a workpiece to create a flat surface.

This article explores the differences between facing CNC lathes and traditional lathes, covering aspects such as operation, precision, efficiency, flexibility, cost, and applications. By understanding these distinctions, manufacturers and machinists can make informed decisions about which type of lathe best suits their needs.

---

1. Operation and Control

Traditional Lathes

Traditional lathes, also known as manual lathes, require direct human intervention for operation. The machinist controls the cutting tools, feed rates, and spindle speeds using handwheels, levers, and mechanical adjustments. The operator must possess significant skill and experience to achieve accurate results, as the process relies heavily on manual dexterity and judgment.

Key characteristics:

- Manual adjustments: The operator sets the tool position, depth of cut, and speed.

- Skill-dependent: Precision depends on the operator’s expertise.

- Limited automation: No programmable features; all movements are manually controlled.

Facing CNC Lathes

CNC lathes, including facing CNC lathes, are automated and controlled by pre-programmed computer software. The operator inputs the design specifications into the CNC system, which then executes the machining process with minimal human intervention. Facing CNC lathes are optimized for facing operations but can also perform other turning tasks.

Key characteristics:

- Computer-controlled: Movements are guided by G-code programs.

- High automation: Tools change automatically, and parameters are set digitally.

- Reduced operator skill requirement: The system handles complex calculations, reducing reliance on manual expertise.

Comparison: CNC lathes eliminate human error in repetitive tasks and allow for complex geometries that would be challenging or impossible on manual lathes. Traditional lathes, however, offer more tactile control for one-off or custom jobs where flexibility is paramount.

---

2. Precision and Accuracy

Traditional Lathes

While skilled machinists can achieve high precision on manual lathes, consistency is harder to maintain over multiple parts. Variations in operator technique, tool wear, and manual measurements can lead to slight deviations.

- Tolerances: Typically within ±0.005 inches for skilled operators.

- Surface finish: Depends on manual tool handling and feed rates.

Facing CNC Lathes

CNC lathes excel in precision due to their automated nature. The computer ensures that each cut is identical, maintaining tight tolerances even for high-volume production.

- Tolerances: Can achieve ±0.0005 inches or better.

- Surface finish: Consistent and repeatable due to programmed parameters.

Comparison: CNC lathes outperform traditional lathes in precision, especially for complex or high-tolerance parts. Manual lathes may suffice for roughing or low-precision work but cannot match CNC consistency.

---

3. Efficiency and Productivity

Traditional Lathes

Manual lathes are slower for production runs due to the time required for setup, adjustments, and manual tool changes. They are better suited for prototyping or small batches.

- Setup time: Longer due to manual alignment.

- Production speed: Limited by operator speed and fatigue.

Facing CNC Lathes

CNC lathes drastically reduce cycle times and increase throughput. Once programmed, they can run unattended for long periods, including overnight.

- Setup time: Faster with digital tool presetting.

- Production speed: High, with minimal downtime between operations.

Comparison: CNC lathes are far more efficient for mass production, while manual lathes are better for low-volume or custom work.

---

4. Flexibility and Versatility

Traditional Lathes

Manual lathes offer great flexibility for on-the-fly adjustments. Operators can modify cuts, feeds, and speeds in real time without reprogramming.

- Ideal for: One-off parts, repairs, or jobs requiring frequent changes.

- Limitations: Not suited for complex geometries or high-repeatability tasks.

Facing CNC Lathes

CNC lathes are highly versatile but require reprogramming for design changes. They excel at complex shapes, threading, and multi-axis operations.

- Ideal for: High-mix or high-volume production with intricate designs.

- Limitations: Less adaptable to sudden changes without software adjustments.

Comparison: Traditional lathes win in adaptability for custom jobs, while CNC lathes dominate in repeatability and complexity.

---

5. Cost Considerations

Traditional Lathes

- Initial cost: Lower upfront investment.

- Operating cost: Higher labor costs due to skilled operator requirements.

- Maintenance: Simpler mechanics but may require frequent manual calibration.

Facing CNC Lathes

- Initial cost: Higher due to advanced technology.

- Operating cost: Lower labor costs (one operator can manage multiple machines).

- Maintenance: Requires technical expertise for software and hardware upkeep.

Comparison: Manual lathes are cheaper initially but cost more in labor over time. CNC lathes have higher startup costs but lower long-term expenses for large-scale production.

---

6. Applications

Traditional Lathes

- Prototyping.

- Repair work.

- Small-batch production.

- Educational training (teaching fundamentals).

Facing CNC Lathes

- Mass production (e.g., automotive, aerospace).

- High-precision components (e.g., medical devices).

- Complex geometries (e.g., turbine blades).

---

Conclusion

The choice between a facing CNC lathe and a traditional lathe depends on factors like production volume, precision needs, budget, and operator skill.

- Traditional lathes are cost-effective for small shops, custom work, or where human judgment is critical.

- Facing CNC lathes are indispensable for high-precision, high-efficiency manufacturing, especially in industries demanding repeatability and complex designs.

As technology advances, CNC lathes are becoming more accessible, but traditional lathes retain their niche for hands-on craftsmanship. Manufacturers must evaluate their specific requirements to determine the best solution.

Ultimately, both types of lathes have their place in modern machining, each excelling in different scenarios. The future may see further integration of CNC automation with manual flexibility, bridging the gap between these two paradigms.
