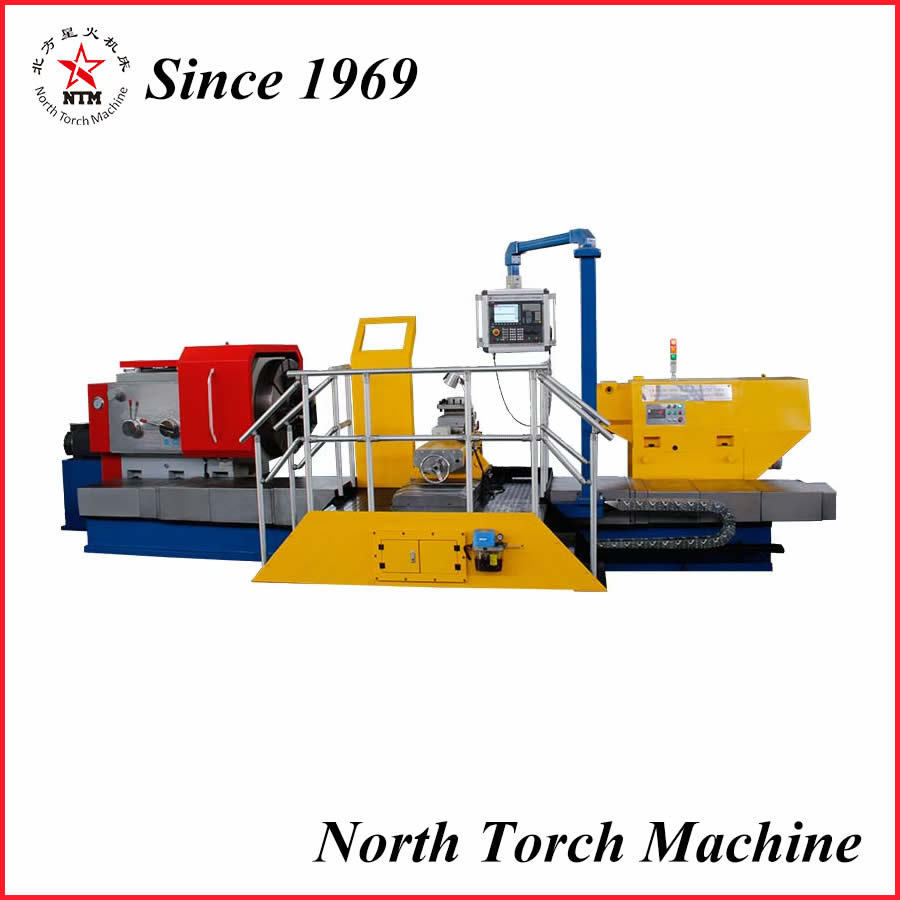

Roll CNC lathe – What are the best control systems?

2025-11-28 09:07:23

The Best Control Systems for Roll CNC Lathes: A Comprehensive Guide

Introduction to CNC Lathe Control Systems

Computer Numerical Control (CNC) lathes have revolutionized modern manufacturing, particularly in the production of rolls used in various industrial applications. The control system serves as the brain of any CNC lathe, interpreting programming instructions and coordinating the machine's movements with precision. For roll manufacturing—where dimensional accuracy, surface finish, and geometric consistency are paramount—selecting the right control system becomes even more critical.

Roll CNC lathes require control systems capable of handling large workpieces, maintaining tight tolerances over extended machining periods, and often incorporating specialized functions for roll grinding, grooving, and texturing. The best control systems combine robust hardware with sophisticated software to deliver the performance needed for these demanding applications.

Key Features of High-Quality CNC Control Systems for Roll Lathes

When evaluating control systems for roll CNC lathes, several essential features should be considered:

1. High Precision Motion Control: The system must maintain exceptional positioning accuracy, often within microns, throughout the entire machining process. This includes precise control of spindle rotation, tool positioning, and feed rates.

2. Advanced Interpolation Capabilities: For complex roll profiles, the control should offer sophisticated interpolation algorithms that can smoothly execute simultaneous multi-axis movements while maintaining programmed path accuracy.

3. Thermal Compensation: Given the large size of rolls and potential for thermal expansion during machining, the best systems incorporate thermal compensation features to maintain dimensional accuracy.

4. User-Friendly Programming: While G-code remains standard, intuitive interfaces with graphical programming aids, conversational programming options, and simulation capabilities significantly enhance productivity.

5. Rigidity and Vibration Control: Special algorithms that monitor and compensate for vibration are particularly valuable in roll machining where tool chatter can affect surface finish.

6. Customizable Cycles: Pre-programmed cycles for common roll machining operations (grooving, threading, tapering) save programming time and reduce errors.

7. Network Connectivity: Modern controls should support industrial networking protocols for seamless integration with factory automation systems and remote monitoring capabilities.

8. Error Prevention and Recovery: Features like collision avoidance, tool wear monitoring, and automatic error recovery help prevent costly mistakes during long machining cycles.

Top Control System Architectures for Roll CNC Lathes

1. PC-Based Control Systems

PC-based controls leverage standard computer hardware running specialized CNC software. These systems offer several advantages for roll machining:

- Flexibility: Easily upgradable hardware and software components

- Computing Power: Capable of handling complex calculations for large workpieces

- Open Architecture: Allows for customization and integration of specialized roll machining functions

- User Interface: Typically features modern graphical interfaces with touchscreen support

The main challenge with PC-based systems is ensuring real-time performance, which requires careful selection of hardware components and operating system configuration.

2. Dedicated CNC Controllers

Purpose-built CNC controllers designed specifically for lathe applications offer:

- Deterministic Performance: Guaranteed real-time response for critical machining functions

- Optimized Hardware: Components selected and tested for industrial environments

- Reliability: Proven track record in continuous production environments

- Specialized Functions: Often include roll-specific machining cycles out of the box

These systems tend to be more expensive than PC-based solutions but offer greater reliability for mission-critical roll production.

3. Hybrid Control Systems

Combining elements of both PC-based and dedicated controllers, hybrid systems offer:

- Real-time CNC Kernel: For critical motion control functions

- Standard PC Platform: For non-time-critical tasks like user interface and networking

- Scalability: Can be configured to match the specific requirements of roll machining

This architecture provides a good balance between performance and flexibility, making it popular for advanced roll lathes.

Critical Control System Capabilities for Roll Machining

Multi-Axis Synchronization

High-end roll lathes often require synchronized movement of multiple axes (typically X, Z, C, and sometimes additional axes for special operations). The control system must precisely coordinate:

- Spindle rotation (C-axis)

- Longitudinal tool movement (Z-axis)

- Radial tool movement (X-axis)

- Optional axes for special attachments

Advanced controls use sophisticated algorithms to maintain perfect synchronization even during acceleration/deceleration and direction changes.

Large Program Memory and Processing

Roll machining programs can be extensive, especially for complex profiles. The best control systems offer:

- Large program memory capacity (often measured in megabytes)

- High-speed program processing to avoid delays during execution

- Look-ahead functionality to optimize tool paths

- Program compression capabilities without loss of precision

Surface Finish Optimization

For rolls where surface quality is critical (such as in paper or steel manufacturing), control systems should include:

- Adaptive feed rate control based on actual cutting conditions

- Vibration damping algorithms

- Surface finish prediction and optimization tools

- Constant surface speed maintenance

Specialized Roll Machining Functions

Top-tier control systems for roll lathes typically include dedicated cycles for:

- Crown machining (parabolic and other complex profiles)

- Grooving and fluting operations

- Special thread forms

- Texturing patterns

- Taper and chamfer transitions

These specialized functions significantly reduce programming time and improve consistency.

Evaluating Control System Performance for Roll Applications

When assessing control systems for roll CNC lathes, consider these performance metrics:

1. Positioning Accuracy: Typically specified in microns over the machine's entire travel

2. Repeatability: The system's ability to return to the same position consistently

3. Interpolation Accuracy: How closely the actual tool path matches the programmed path

4. Data Processing Speed: Particularly important for complex 3D contouring

5. Response Time: How quickly the system reacts to operator inputs or sensor feedback

6. Thermal Stability: Ability to maintain accuracy as ambient conditions change

7. Error Recovery: How gracefully the system handles unexpected conditions

Future Trends in CNC Control Systems for Roll Lathes

The evolution of control systems continues to bring new capabilities to roll machining:

- Artificial Intelligence Integration: Machine learning algorithms for predictive maintenance, process optimization, and adaptive control

- Enhanced Simulation: More sophisticated virtual machining environments to verify programs before execution

- IoT Connectivity: Greater integration with factory-wide monitoring and optimization systems

- Augmented Reality Interfaces: Potential for enhanced operator assistance and training

- Energy Optimization: Smart algorithms to reduce power consumption without compromising performance

Selection Considerations for Roll Manufacturers

Choosing the right control system depends on several factors:

1. Roll Types and Materials: Different materials (steel, ceramic, composite) may require specific control features

2. Production Volume: High-volume operations may prioritize reliability and automation features

3. Part Complexity: More complex roll profiles demand advanced interpolation and synchronization

4. Operator Skill Level: Some systems are more operator-friendly than others

5. Future Needs: Consider upgradability and expandability

6. Budget: Balance initial cost with long-term productivity gains

Conclusion

Selecting the best control system for roll CNC lathes requires careful consideration of both current needs and future requirements. The ideal system combines robust hardware architecture with sophisticated software capabilities tailored specifically to the challenges of roll machining. While numerous options exist in the market, the most effective solutions will offer exceptional precision, reliable performance, specialized roll machining functions, and the flexibility to adapt to evolving production needs.

By focusing on the key features outlined in this guide—including motion control accuracy, thermal compensation, specialized cycles, and advanced interpolation capabilities—manufacturers can identify control systems that will maximize their roll lathe performance and productivity. As technology continues to advance, staying informed about emerging control system capabilities will help maintain competitive advantage in the precision roll manufacturing industry.
