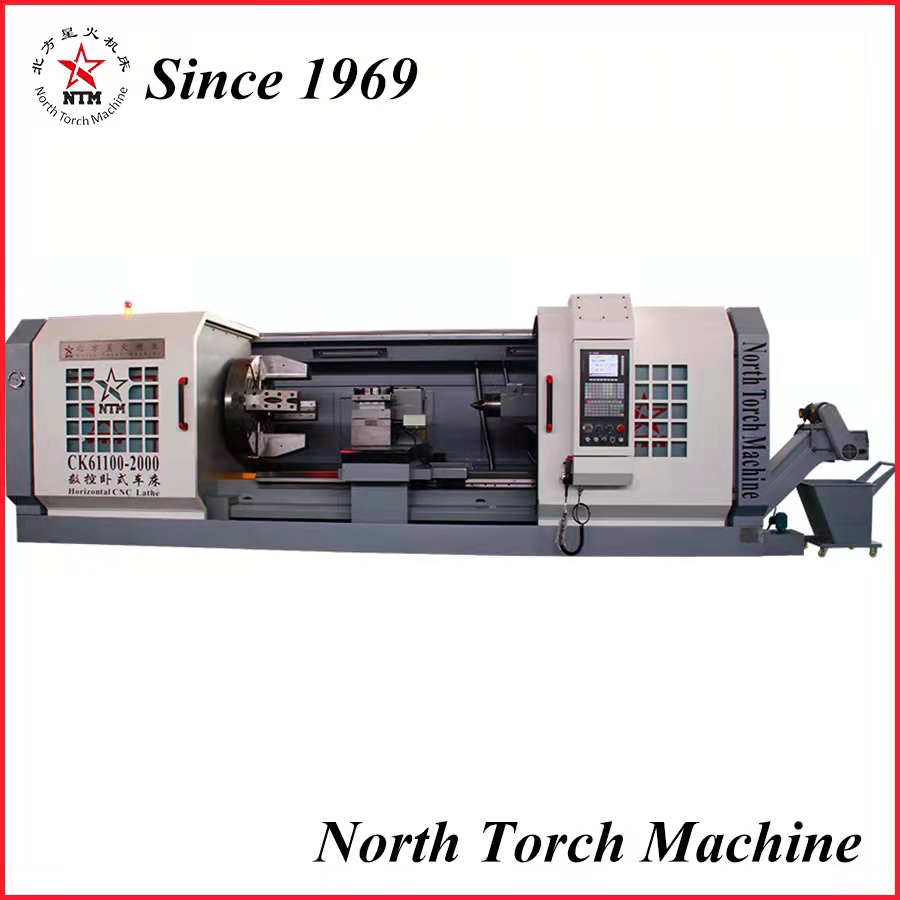

Roll turning lathe – How to optimize for heavy roughing?

2025-11-27 09:28:31

Optimizing a Roll Turning Lathe for Heavy Roughing Operations

Introduction

Roll turning lathes are essential machines in heavy industries for processing large cylindrical workpieces such as rolls for steel mills, paper machines, and other industrial applications. When it comes to heavy roughing operations—where the primary goal is to remove large amounts of material quickly—proper optimization of the lathe becomes critical for productivity, tool life, and machine longevity. This comprehensive guide explores various strategies to optimize a roll turning lathe specifically for heavy roughing applications.

Understanding Heavy Roughing Requirements

Heavy roughing operations differ significantly from finishing operations in several key aspects:

1. Material Removal Rate (MRR): The primary objective is maximum MRR within machine capability limits

2. Surface Finish: Secondary concern compared to finishing operations

3. Tolerances: Less stringent than final machining stages

4. Cutting Forces: Substantially higher than normal turning operations

5. Heat Generation: Significant due to high metal removal rates

Understanding these fundamental differences helps establish the optimization priorities for heavy roughing.

Machine Preparation and Setup

1. Machine Rigidity Assessment

Before beginning heavy roughing operations, ensure the lathe has sufficient rigidity:

- Check all machine components for wear or looseness

- Verify proper alignment of headstock, tailstock, and carriage

- Ensure all locking mechanisms are functional

- Inspect guideways and sliding surfaces for proper lubrication

2. Workpiece Support Configuration

Proper workpiece support is crucial for heavy roughing:

- Use steady rests for long workpieces to prevent deflection

- Position steady rests at optimal intervals (typically every 3-4 times the diameter)

- Ensure tailstock support is properly adjusted and lubricated

- Consider using multiple steady rests for extremely heavy cuts

3. Chuck or Faceplate Selection

Choose the appropriate workpiece holding method:

- For maximum grip, use forged steel chucks with hardened jaws

- Consider custom jaws for irregularly shaped rolls

- Ensure chuck pressure is sufficient to prevent slippage

- Balance the workpiece properly to minimize vibration

Cutting Tool Selection and Geometry

1. Insert Grade Selection

For heavy roughing of rolls:

- Choose carbide grades specifically designed for heavy roughing

- Consider coated carbides with TiAlN or AlTiN coatings for high-temperature resistance

- For particularly tough materials, consider ceramic or CBN inserts

- Ensure the grade matches the workpiece material (steel, cast iron, etc.)

2. Insert Geometry Optimization

Key geometric features for heavy roughing:

- Large positive rake angles to reduce cutting forces

- Strong, reinforced cutting edges to withstand high loads

- Chipbreakers designed for heavy cuts and effective chip control

- Large nose radius (within stability limits) for better heat distribution

3. Tool Holder Considerations

- Use the most rigid tool holder available

- Prefer negative rake tool holders for increased stability

- Ensure proper overhang (minimum necessary for clearance)

- Consider heavy-duty tool posts designed for roughing operations

Cutting Parameters Optimization

1. Depth of Cut (DOC)

For maximum material removal:

- Use the maximum DOC the machine and workpiece can handle

- Typically 5-15mm depending on machine power and rigidity

- Consider multiple heavy passes rather than one extremely heavy cut

- Adjust DOC based on workpiece diameter and machine stability

2. Feed Rate Selection

Optimal feed rates for heavy roughing:

- Higher feed rates generally preferred over very high speeds

- Typical range: 0.3-1.2 mm/rev depending on material and insert

- Balance between chip thickness and tool life

- Consider the machine's power curve when selecting feed rates

3. Cutting Speed Considerations

Speed selection guidelines:

- Lower than finishing speeds to maintain tool life

- Consider the heat generation and chip formation characteristics

- Adjust based on workpiece material (lower for harder materials)

- Monitor for built-up edge formation and adjust accordingly

4. Power Utilization

- Aim for 80-90% of available spindle power for maximum efficiency

- Monitor power consumption to avoid overloading

- Consider torque requirements at lower speeds for large diameters

Coolant and Lubrication Strategies

1. Flood Coolant Application

For heavy roughing operations:

- Use high-volume, high-pressure coolant systems

- Position coolant nozzles to directly reach the cutting zone

- Consider through-tool coolant if available

- Ensure proper filtration to prevent nozzle clogging

2. Dry Machining Considerations

In some cases, dry machining may be preferable:

- For certain materials that work better without coolant

- When using ceramic or CBN inserts that prefer dry conditions

- In situations where thermal shock is a concern

- Requires careful monitoring of temperature and tool wear

3. Lubrication of Machine Components

- Ensure all moving parts are properly lubricated

- Pay special attention to carriage and cross-slide lubrication

- Monitor way lubrication systems for proper operation

- Consider automatic lubrication systems for continuous operation

Process Monitoring and Control

1. Vibration Monitoring

- Implement vibration sensors if available

- Listen for chatter and adjust parameters accordingly

- Consider dynamic vibration dampeners if vibration is problematic

- Monitor for harmonic vibrations at certain speeds

2. Tool Wear Monitoring

- Establish regular tool inspection intervals

- Monitor for flank wear, crater wear, and edge chipping

- Implement tool life management systems if available

- Consider acoustic emission monitoring for tool condition

3. Surface Quality Checks

Even in roughing:

- Monitor surface finish for signs of instability

- Check for consistent chip formation

- Look for signs of built-up edge or other anomalies

- Verify dimensional progress toward final targets

Workpiece Considerations

1. Material Properties

- Understand the workpiece material's machinability

- Consider pre-hardened vs. annealed conditions

- Be aware of hard spots or inclusions in cast materials

- Adjust parameters for material variations

2. Workpiece Temperature

- Monitor for excessive workpiece heating

- Consider thermal expansion effects on dimensions

- Allow for cooling periods if necessary

- Be aware of temperature gradients in the workpiece

3. Residual Stress Management

- Understand how heavy machining affects residual stresses

- Consider roughing sequence to balance stress distribution

- Allow for stress relief between operations if needed

- Monitor for distortion after heavy cuts

Maintenance Considerations for Heavy Roughing

1. Preventive Maintenance Schedule

- Increase frequency of inspections for machines used in heavy roughing

- Pay special attention to spindle bearings and guideways

- Monitor backlash in feed screws and adjust as needed

- Keep detailed maintenance records

2. Wear Part Replacement

- Replace components before they affect machining quality

- Maintain inventory of critical wear parts

- Consider upgrading to more durable components

- Monitor slideway wear patterns

3. Alignment Checks

- Perform regular alignment verification

- Check headstock alignment with tailstock

- Verify carriage movement parallelism

- Monitor bed wear patterns

Safety Considerations

1. Chip Management

- Implement effective chip removal systems

- Ensure proper guarding around cutting areas

- Consider automated chip conveyors for continuous operation

- Be aware of sharp, hot chips during operation

2. Machine Guarding

- Verify all safety guards are in place and functional

- Ensure emergency stop systems are operational

- Maintain proper lighting in the work area

- Implement lockout/tagout procedures for maintenance

3. Operator Protection

- Require proper personal protective equipment

- Implement safety training for heavy roughing operations

- Consider noise reduction measures

- Provide proper ventilation for coolant mist

Advanced Optimization Techniques

1. Adaptive Control Systems

If available:

- Implement adaptive control to maintain optimal cutting conditions

- Use power monitoring to adjust feed rates automatically

- Consider force feedback systems for parameter optimization

- Implement tool wear compensation systems

2. Simulation and Modeling

Advanced options:

- Use cutting force simulation to predict optimal parameters

- Implement virtual machining to test strategies

- Consider thermal modeling for process optimization

- Use predictive maintenance algorithms

3. Data Collection and Analysis

For continuous improvement:

- Implement data logging of machining parameters

- Analyze trends in tool life and machine performance

- Use historical data to refine processes

- Consider machine learning approaches for optimization

Troubleshooting Common Issues

1. Excessive Vibration or Chatter

Possible solutions:

- Reduce DOC or feed rate

- Increase cutting speed (within limits)

- Check workpiece support and tool rigidity

- Consider different insert geometry

2. Premature Tool Wear

Potential remedies:

- Adjust cutting parameters (typically reduce speed)

- Try different insert grade or coating

- Improve coolant application

- Check for improper tool holder setup

3. Poor Surface Finish in Roughing

Improvement strategies:

- Increase feed rate to improve chip formation

- Check for tool wear or improper geometry

- Verify machine rigidity and workpiece support

- Consider different chipbreaker design

Conclusion

Optimizing a roll turning lathe for heavy roughing operations requires a systematic approach that considers machine capability, tooling selection, cutting parameters, and process monitoring. By implementing these optimization strategies, manufacturers can achieve significant improvements in material removal rates, tool life, and overall process efficiency. The key is to balance aggressive metal removal with machine stability and tool longevity, while maintaining safety and process control. Regular monitoring and adjustment based on actual performance will lead to continuous improvement in heavy roughing operations.
